Description
The main difference between the Venus Profile and Venus Pro Profile lies in their design aesthetics, profile thickness, premium finish, and overall visual appeal in modern wardrobe systems.
The Venus Profile is ideal for elegant and functional modern wardrobes, while the Venus Pro Profile is preferred for more luxurious interiors where a slimmer appearance and premium finish are important. Both systems are made using high-quality aluminium and support multiple glass design options with smooth sliding functionality.
Venus Profile is primarily used for sliding door systems in modern interior applications. It is widely used for:
- Sliding Wardrobe Doors
- Walk-in Wardrobe Systems
- Inline Wardrobes
- Hall Partition Sliding Doors
- Glass Sliding Door Systems
- Modular Storage & Closet Solutions
In simple terms, Venus Pro is an upgraded and more premium version of the standard Venus Profile, offering enhanced strength, smoother operation, and a more luxurious appearance.

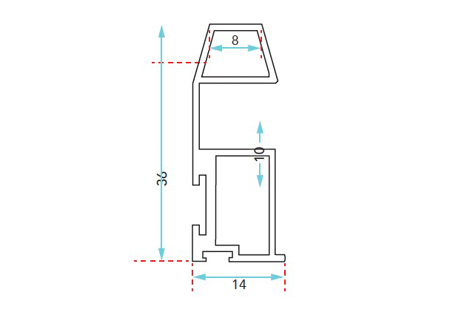

Venus Profile Cross Section

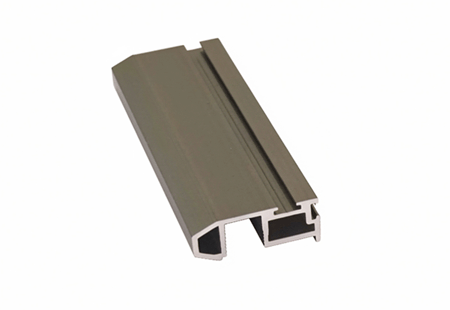

Venus Profile (Champagne)
Available Colors
Black
Brown
Champagne
Copper Gold
Space Optimization
Flexible Layouts
Smart Technology
Cost Efficiency
Why Choose Venus Profile?
We focus on delivering premium-quality aluminium sliding solutions with exceptional craftsmanship and precision engineering.
Few unique qualities of Venus Pro Profile:
- Designed for luxury wardrobe systems
- Better stability for bigger and heavier doors
- More premium finish and enhanced aesthetics
- Superior sliding experience and durability
- Perfect for high-end modular interiors
- Premium Aluminium
- Durable Surface Finishes
- Elegant Minimalist Design
- Smooth & Silent Sliding Experience
- Precision Engineering & Easy Installation
- Low Maintenance & Long-Term Reliability
- Space-Saving Functionality
- Soft-Close Comfort & Safety
Panel Inserts
Possible panel materials support a wide range of panel finishes:
- Clear / Frosted Glass
- Lacquered Glass
- Mirror Panels
- Decorative Laminated Inserts
- Acrylic Panels
- Wooden Textures
- Digital Printed Glass
- MDF Panels
Why Choose Apex C Profile?
We focus on delivering premium-quality aluminium sliding solutions with exceptional craftsmanship and precision engineering.
Our Apex H Profile Sliding Door Systems are thoughtfully engineered to deliver the perfect combination of modern aesthetics, structural durability, and effortless functionality. Designed for contemporary interiors, these systems provide a premium wardrobe solution that enhances both appearance and everyday usability.
- Premium Aluminium
- Elegant Minimalist Design
- Smooth & Silent Sliding Experience
- Space-Saving Functionality
- Soft-Close Comfort & Safety
- Durable Surface Finishes
- Precision Engineering &
- Easy Installation
- Low Maintenance & Long-Term Reliability
Core Components System
Typical system architecture includes:
1. Apex H Profile Horizontal Divider
Aluminium H-section acting as the door handle and a dual-purpose structural element mounted on the leading edge of the sliding shutter.
2. Top & Bottom Tracks
Guides the door movement and carries the upper roller. Supports weight and stabilizes the Precision-guided sliding system panel. Double or triple tracks to allow for various stacking configurations.
3. Hardware Kit
Includes anti-jump bottom rollers, top guides, and soft-close dampers.
4. High-Quality Rollers / Wheels
Precision rollers enable smooth, low-noise sliding and stable movement.
5. Panel Inserts
Possible panel materials support a wide range of panel finishes:
- Clear / Frosted Glass
- Lacquered Glass
- Mirror Panels
- Decorative Laminated Inserts
- Acrylic Panels
- Wooden Textures
- MDF Panels
Create custom wardrobe solutions tailored to both contemporary and classic interiors.
6. Soft Close Mechanism (optional)
Ensures controlled and silent noiseless closing.
Dimension
This is used to join two different panels (e.g., a mirror top and a wooden bottom) on a single door shutter.
Overall Dimensions
- Width (W): 80 mm
- Height (H): 40 mm
Top Flange
- Top Plate Thickness: 2.2 mm
- Top Flange Width (each side): 20 mm
- Center Groove Width: 6 mm
- Groove Depth: 3 mm
Vertical Web (Main Body)
- Web Thickness: 2.0 mm
- Internal Hollow Width: 28 mm
- Internal Hollow Height: 26 mm
Bottom Channel Section
- Bottom Slot Width: 12 mm
- Hook Lip Thickness: 1.5 mm
- Hook Return Depth: 4 mm
- Channel Depth: 10 mm
Side Walls
- Side Wall Thickness: 2.0 mm
- Outer Side Height (below flange): 34 mm
Radii & Finishing
- Internal Corner Radius (R): 0.8 – 1.2 mm
- External Edge Radius: 0.5 mm
- Surface Finish: Anodized / Powder Coated
Track Dimensions (Top & Bottom Rails)
Track Specifications
- Top Track Material: Extruded Aluminium
- Bottom Track Material: Heavy-Duty Aluminium
- Track Finish: Matching Profile Finish
- Maximum Track Length: Up to 5500 mm
For your visual assets, the depth of the wardrobe depends on whether you use a 2-track or 3-track system.
| Track Type | Total Width (Depth) | Total Height |
| Top Double Track | 75mm to 85mm | 40mm to 45mm |
| Bottom Double Track | 75mm to 85mm | 10mm to 15mm |
| Top Triple Track | 110mm to 125mm | 40mm to 45mm |
| Bottom Triple Track | 110mm to 125mm | 10mm to 15mm |
Applications
H-Type profile sliding door systems are highly versatile, finding use in environments where space-saving and structural durability are the top priorities. Designed for both functional utility and high-end design.
1. Interior Residential Design
In modern homes, H-Type profiles are the “gold standard” for creating flexible living spaces.
Room Dividers: Used to separate a home office from a living room without the footprint of a swing door. The H-profile provides the necessary rigidity for floor-to-ceiling glass partitions.
Walk-in Wardrobes: The slim profile allows for massive, mirrored sliding doors that stay perfectly aligned on their tracks, even with frequent daily use.
En-suite Bathrooms: Because aluminum H-profiles are resistant to moisture, they are ideal for frosted glass bathroom entries that save space in tight master suites.
2. Commercial and Office Spaces
Durability and aesthetics are key in high-traffic professional environments.
Conference Rooms: Large glass panels held by H-profiles create sound-dampening boundaries while maintaining an “open office” feel.
Retail Storefronts: Many shopping mall entrances use heavy-duty H-type systems to support thick, security-grade glass panels that slide away to create wide, inviting entrances.
Office “Phone Booths”: Small acoustic pods often use H-type sliders to maximize the internal footprint of the pod.
3. Hospitality and Showrooms
The “H” shape allows for a very clean finish that complements luxury branding.
Hotel Balconies: H-type systems are frequently used for patio doors because they can incorporate weather-stripping and seals directly into the profile channels to prevent drafts.
Car Showrooms: These require incredibly large, heavy glass panels. The structural strength of the H-profile ensures these massive doors don’t sag or derail.
4. Specialized Functional Applications
Pocket Doors: H-profiles are ideal for doors that slide entirely into a wall cavity. The profile’s stability prevents the door from rattling inside the “pocket” where it would be difficult to repair.
Cleanrooms and Laboratories: In medical or tech manufacturing, H-profiles with integrated gaskets are used to create airtight sliding seals to maintain controlled environments.
Technical Specifications
Material: Architectural Premium High-grade Aluminum Alloy (Usually 6063-T5)
Profile Lengths: Standard 2.4m (8ft), 2.7m (9ft), 3.0m (10ft), 3.6m (12ft), 4.5m (15ft), and 5.4m (18ft). (Cut to size as required)
Compatible Infill: 4mm–6mm Glass/Mirror, 10mm–18mm Boards, 18mm–25mm Wood Panels
Load Capacity: Supports up to 80kg – 120kg per door shutter (depending on roller hardware)
Hardware Compatibility: Bottom-rolling or Top-hung configurations
Surface Treatment: Anodized Finish, Powder Coated, Matte & Metallic Finishes
Maximum Door Height: Up to 2700mm
Maximum Door Width: Up to 1200mm per shutter
Minimum Door Width: 600 mm
Recommended Wardrobe Depth: Minimum 100 mm track clearance
Door Overlap: Approximately 25–30 mm
Design Advantage
Slim Profile: Modern, premium appearance
Integrated Handle: Clean, seamless look
Lightweight Construction: Effortless sliding
Modular Design: Flexible customization
Aluminium Build: Long-lasting durability
Ideal for Modern Living
Apex H Profile Sliding Door Systems are crafted for architects, interior designers, and premium homeowners who demand a balance of aesthetics, functionality, and performance.
